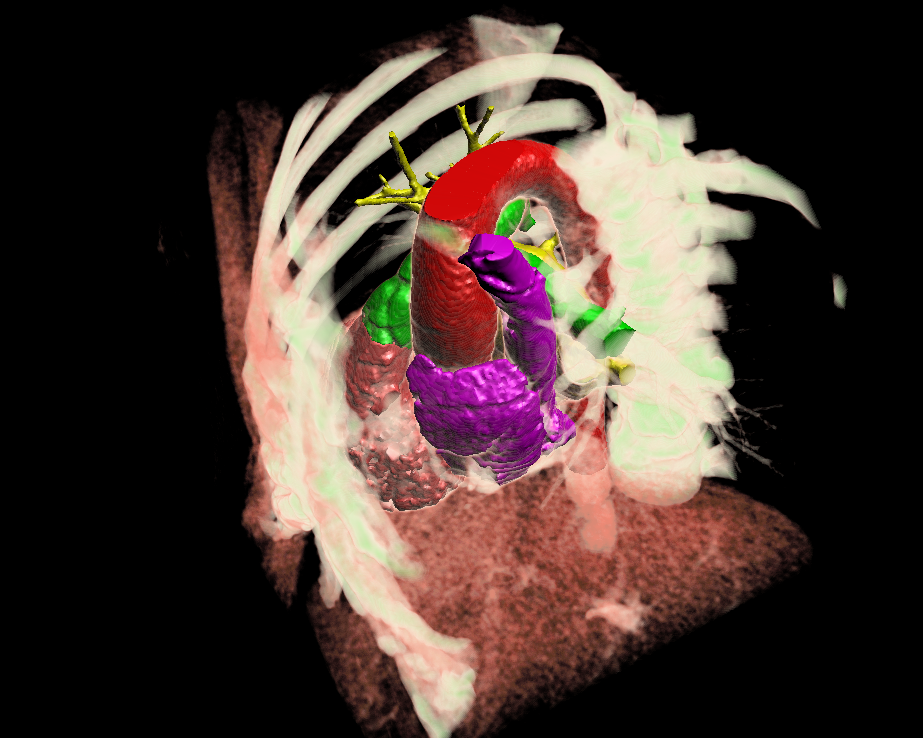

(a): Combined isosurface/volume rendering of a model human heart complete with atrial/ventricular valves between heart chambers. (b): tetrahedral finite element mesh of (a). (c): wireframe rendering of the mesh in (b): the valves and heart chambers have been colored differently. (d): cross section of the tetrahedral volumetric mesh (728321 tets): the heart chambers and even the aorta (top) are colored differently. (e) and (f) show the triangular A-patch and smooth models. (g) shows the labels of the heart compartments. |
|
|
|
|
|
|

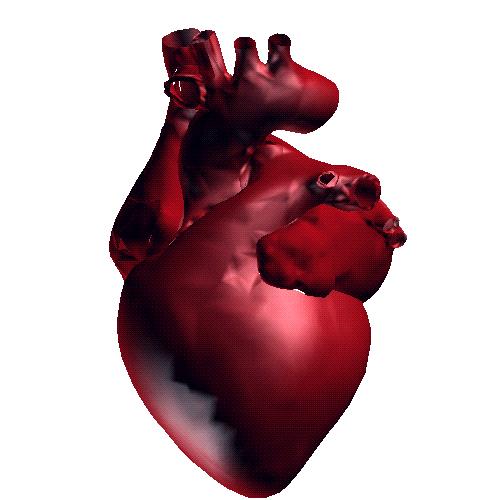

Segmented heart, blood vessels(Aorta, Vena cava, Arteries) |
||||
|

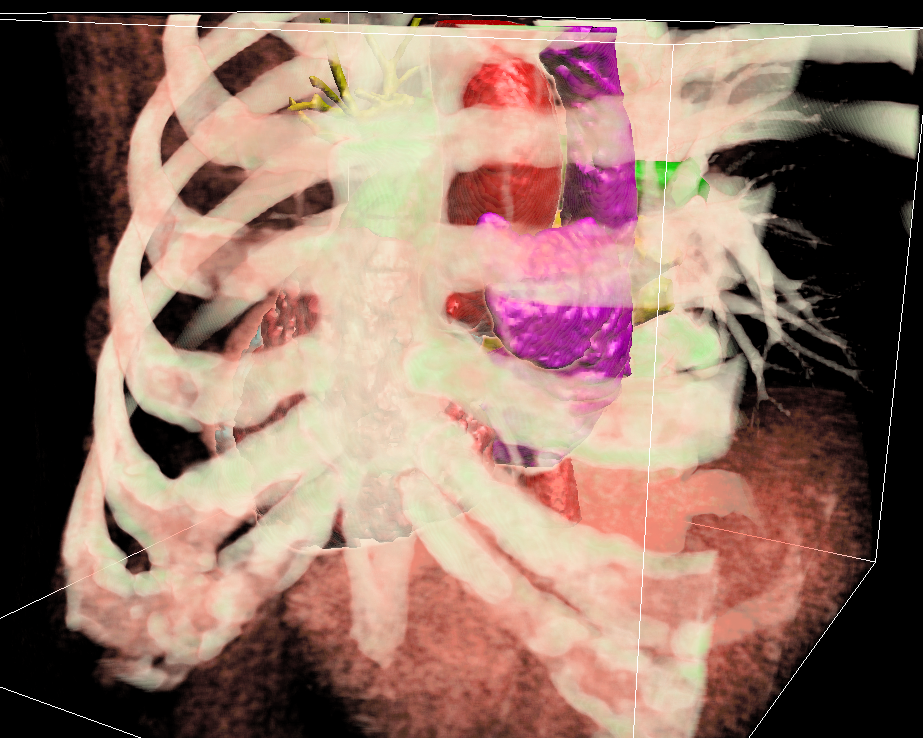

Additional images for Heart-modeling
click here for an interactive view of Heart Model (viewer works with I.E only)
|
