CS 384G Final Project: Radiosity Solver

David Wahler, Spring 2010

Live demo (see requirements below)

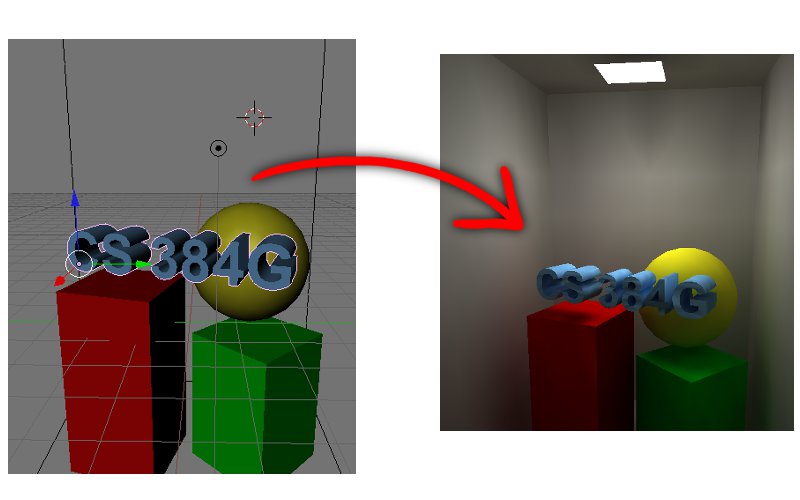

This image contains ~6000 polygons and was generated using 700 iterations in about half an hour of CPU time. Note the soft shadows and color bleeding between objects.

Introduction

Simple, real-time 3D graphics applications typically use a lighting model like the default one provided by OpenGL, which includes only local illumination effects. (The Phong lighting equation is one such model.) This fails to account for many important lighting effects, such as shadows, ambient illumination, and color bleeding. My project is an implementation of the radiosity method, which precomputes global illumination for a static scene, allowing it to be rendered at interactive frame rates inside a WebGL-compliant web browser.

This project is broken into three components. The first is a straightforward plugin for Blender, a popular open source 3D modeling application, which exports a polygonal scene to a simple plain text format. The second component is a standalone C++ program which reads this scene file, performs the radiosity computations, and generates as output a version of the scene with colors at each vertex containing the global illumination values. The final piece of the project is a simple JavaScript application that loads this model and displays it from a moving viewpoint.

Radiosity Algorithm

The radiosity algorithm is well-known in the graphics community: it was originally developed in the 1950s for simulating radiative heat transfer in space probes (Sillion) and subsequently applied to global illumination in the 1980s. (Goral) It involves dividing the scene up into discrete patches and computing the illumination by solving a system of linear equations. In my implementation, each triangle in the scene is one patch.

Explicitly creating this system of equations requires computing a form factor for each pair of patches. Not only is this prohibitive for large scenes, but numerically computing the form factor even for a single pair of polygons is non-trivial. (Closed form solutions exist for certain special cases, e.g. in the absence of occlusion. (Schroder))

For my implementation, I used the "stochastic relaxation radiosity" method of (Dutre), described in section . Instead of explicitly computing form factors, this algorithm finds an approximate solution to the system of equations by shooting rays through the scene. Since the probability of a randomly-emitted ray from one patch hitting another patch is equal to the form factor between the two patches, this provides an unbiased estimate of the true solution, with progressively decreasing noise as more iterations are computed.

The solver first performs a fast initial approximation using the "incremental power shooting" variant of the algorithm. It then performs repeated iterations of the "regular power shooting" algorithm and averages them together. Because this second phase is incremental, the program can run indefinitely, producing more and more accurate approximations. To accelerate the ray-triangle intersection calculations, polygons are stored in a BSP tree.

Viewer

The scene viewer component of this project is a simple JavaScript application that uses the HTML5 canvas element and its associated WebGL API to render the illuminated scene from a moving viewpoint. The model's data is loaded into a series of buffer objects on the GPU, and a single API call renders the entire model.

The WebGL specification is, at the time of writing, only a draft standard. Recent developer preview versions of Google Chrome and Mozilla Firefox implement the current version of the spec, but since it is still experimental it needs to be manually enabled:

For Google Chrome "dev channel" builds (version 5.0.366 and up) and corresponding versions of the Chromium open source browser, start the browser with the "--enable-webgl" command line option.
For Mozilla Firefox (version 3.7 alpha 2 and up), type "about:config" into the address bar and set the "webgl.enabled_for_all_sites" preference to true.

Note that the WebGL specification is defined as a wrapper around OpenGL ES 2.0, which is a subset of the full OpenGL 2.0 API. In particular, it is not supported by certain low-end integrated graphics chips, which typically only support OpenGL 1.3. Although the functionality required for this demo is very simple and could easily be designed to run on older graphics chips, OpenGL ES provides no mechanism for accessing the deprecated fixed-function pipeline.

Limitations

There are several inherent limitations of the radiosity algorithm:

It only applies to static scenes in which all surfaces are have a diffuse Lambertian BRDF. In other words, view-dependent effects such as specular reflection are not supported. These effects could be added using other techniques such as photon mapping, at the cost of additional computation and complexity.
High-frequency effects are limited by the size of the patches. Effects like sharp shadows from point lights are hard to represent without an excessively fine-grained model. For simplicity, I did not attempt any kind of automatic subdivision; I rely on the modeler to set the polygon size appropriately.

My implementation has the following additional limitations:

All lights are polygonal area lights. (In fact, lights are just polygons with a non-zero emissivity coefficient.)
Objects are limited to polygonal models with a solid color for each face.
One problem with the "shooting" radiosity method is that smaller patches will be hit less frequently by rays, and therefore will have more noise than large patches. This can be alleviated by simply running the algorithm for more iterations.
Only one CPU core is used. Parallelizing the algorithm would probably yield large performance improvements on multicore systems.

Acknowledgements

References

[1] Dutré, P., K. Bala, and P. Bekaert (2006). Advanced Global Illumination, 2nd edition. Wellesley, MA, USA: A K Peters Ltd.

[2] Goral, C. M., K. E. Torrance, D. P. Greenberg, and B. Battaile (1984, July). Modeling the interaction of light between diffuse surfaces. In SIGGRAPH '84: Proceedings of the 11th annual conference on Computer graphics and interactive techniques, New York, NY, USA, pp. 213-222. ACM Press.

[3] Schroder, P. and P. Hanrahan (1993). On the form factor between two polygons. In Proceedings of the 20th annual conference on Computer graphics and interactive techniques, New York, NY, USA, pp. 163-164. ACM Press.

[4] Sillion, F. X. and C. Puech (1994). Radiosity and Global Illumination. San Francisco, CA, USA: Morgan Kaufmann Publishers Inc.
