Unit 4.3.2 Parallelizing the first loop around the micro-kernel

Let us start by considering how to parallelize the first loop around the micro-kernel:

The situation here is very similar to that considered in Unit 4.1.1 when parallelizing the IJP loop ordering. There, we observed that if \(C \) and \(A\) are partitioned by rows, the matrix-matrix multiplication can be described by

\begin{equation*} \left( \begin{array}{c} \widetilde c_0^T \\ \hline \vdots \\ \hline \widetilde c_{m-1}^T \end{array} \right) := \left( \begin{array}{c} \widetilde a_0^T \\ \hline \vdots \\ \hline \widetilde a_{m-1}^T \end{array} \right) B + \left( \begin{array}{c} \widetilde c_0^T \\ \hline \vdots \\ \hline \widetilde c_{m-1}^T \end{array} \right) = \left( \begin{array}{c} \widetilde a_0^T B + \widetilde c_0^T \\ \hline \vdots \\ \hline \widetilde a_{m-1}^T B + \widetilde c_{m-1}^T \end{array} \right) . \end{equation*}

We then observed that the update of each row of \(C\) could proceed in parallel.

The matrix-matrix multiplication with the block of \(A\) and micro-panels of \(C\) and \(B \) performed by the first loop around the micro-kernel instead partitions the block of \(A \) into row (micro-)panels and the micro-panel of \(C\) into micro-tiles.

\begin{equation*} \left( \begin{array}{c} C_0 \\ \hline \vdots \\ \hline C_{M-1} \end{array} \right) := \left( \begin{array}{c} A_0 \\ \hline \vdots \\ \hline A_{M-1} \end{array} \right) B + \left( \begin{array}{c} C_0 \\ \hline \vdots \\ \hline C_{M-1} \end{array} \right) = \left( \begin{array}{c} A_0 B + C_0 \\ \hline \vdots \\ \hline A_{M-1} B + C_{M-1} \end{array} \right) . \end{equation*}

The bottom line: the updates of these micro-tiles can happen in parallel.

Homework 4.3.2.1.

In directory Assignments/Week4/C,

  • Copy Gemm_Five_Loops_Packed_MRxNRKernel.c into Gemm_MT_Loop1_MRxNRKernel.c.

  • Modify it so that the first loop around the micro-kernel is parallelized.

  • Execute it with

    export OMP_NUM_THREADS=4
make MT_Loop1_8x6Kernel

  • Be sure to check if you got the right answer!

  • View the resulting performance with data/Plot_MT_performance_8x6.mlx, uncommenting the appropriate sections.

Solution

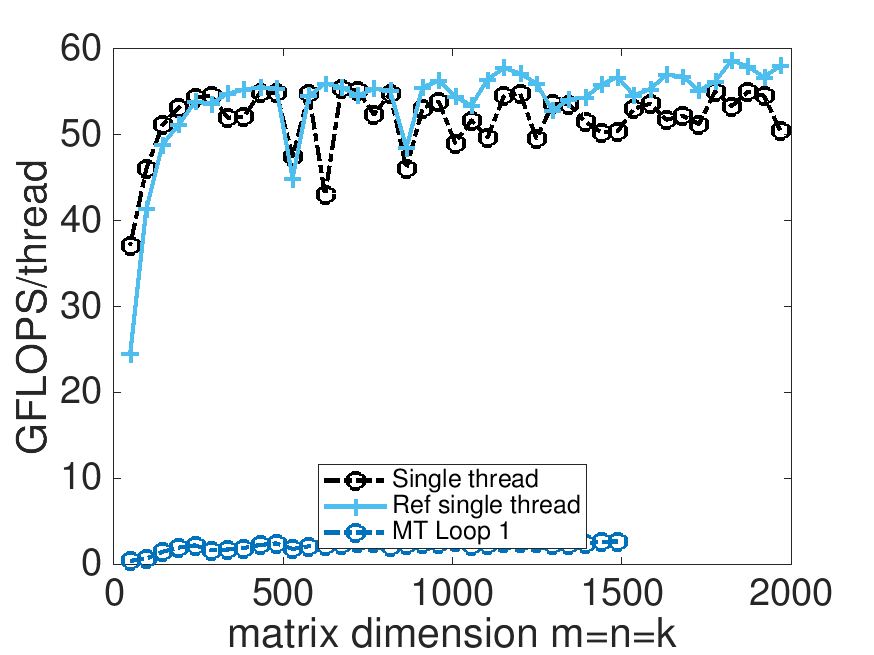

On Robert's laptop (using 4 threads):

Parallelizing the first loop around the micro-kernel yields poor performance. A number of issues get in the way:

  • Each task (the execution of a micro-kernel) that is performed by a thread is relatively small and as a result the overhead of starting a parallel section (spawning threads and synchronizing upon their completion) is nontrivial.

  • In our experiments, we chose MC=72 and MR=8 and hence there are at most \(72/8=9\) iterations that can be performed by the threads. This leads to load imbalance unless the number of threads being used divides \(9\) evenly. It also means that no more than \(9 \) threads can be usefully employed. The bottom line: there is limited parallelism to be found in the loop.

    This has a secondary effect: Each micro-panel of \(B\) is reused relatively few times by a thread, and hence the cost of bringing it into a core's L1 cache is not amortized well.

  • Each core only uses a few of the micro-panels of \(A \) and hence only a fraction of the core's L2 cache is used (if each core has its own L2 cache).

The bottom line: the first loop around the micro-kernel is not a good candidate for parallelization.
