scale.test
Class Scale

java.lang.Object
  scale.test.Scale

Direct Known Subclasses:

CC

public class Scale
extends java.lang.Object

This class provides the top-level control for the Scale compiler.

$Id: Scale.java,v 1.335 2007-10-04 19:53:33 burrill Exp $

Copyright 2008 by the Scale Compiler Group,
Department of Computer Science
University of Massachusetts,
Amherst MA. 01003, USA
All Rights Reserved.

Top Level

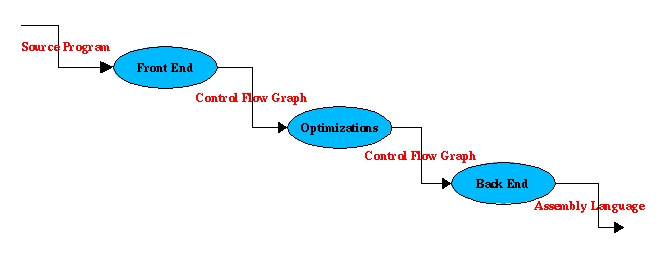

Like all compilers the Scale compiler follows the following high level flow. The front end of the compiler parses the source program and converts it into the form upon which the compiler performs optimizations. Once the program has been transformed by the various optimizations, it is converted to the machine language of the target system. Scale generates assembly language and calls the native assembler to generate the actual object modules (i.e., .o files).

While not shown on this diagram or the more detailed diagrams of the major parts of the compiler, it is possible to generate .c files and/or graphical displays after any part of the compiler. These .c files and graphical displays are used primarily as an aid to debugging the compiler. Command line switches are provided to control the generation of the files and displays.

Front End

The front end parses the source program and converts it to a high-level, program-language dependent form called the Abstract Syntax Tree (AST) which we call Clef. This AST form is then converted to a machine-independent form called the Control Flow Graph (CFG) which we call Scribble.

The parsers generates an AST file which Scale then reads and converts to Clef. The Clef AST is then converted to Scribble by the Clef2Scribble package.

Optimizations

Scale provides many different optimizations. (The optimizations performed and the order in which they are performed is controllable by command line switches.) Most Scale optimizations are performed when the CFG is in Static Single Assignment (SSA) form. The Scale compiler will converted the CFG to and from this form as needed.

Back End

The Scale back end is very simple conceptually. The Generator module simply converts from the CFG to assembly language. The back end converts the CFG into machine specific instructions. However, the instruction representation allows the instructions to be manipulated in a machine independent way. (This object-oriented approach is used by the register allocator.) Once the instructions are generated and the registers are allocated the sequence of instructions is converted to assembly language by the Assembler module.

Currently Scale can generate assembly language for four different systems:

1. Alpha EV5
2. Sparc V8
3. PowerPC
4. Mips M10000 (incomplete)
5. Trips

Others may be added.

Command Line Switches

Execute

  java scale.test.Scale -help


to see the list of command line switches available.

Cross-compiling

Scale can be used as a cross compiler when the host machine architecture is different from the target machine architecture. The target machine architecture is specified using the -arch architecture command line switch. When Scale is used as a cross compiler the include file directories must be explicitly enumerated using the -I command line switch to specify include files for the target system. Also, since Scale produces assembly language files, and calls the assembler to convert them to .o files, the -oa switch cannot be used; use only the -a or -c command line switches.

Scale Data Flow

This page describes the data flow in the Scale compiler at a macro level. At this level the data flow is basically a pipeline so no diagram is provided. At a lower level, each component of the data flow of the compiler is best described using control flow.

Data Flow Outline

1. Front End
   1. C99
   2. F95
2. Clef2Scribble
   1. Conversion of AST to CFG
   2. Simple if-conversion and if-combining
   3. Conversion of irreducible graphs to reducible graphs
   4. Conversion of implicit loops to explicit loops
   5. Insertion of missing loop exits
3. Inlining
4. Alias Analysis
5. Scalar Optimizations
6. Hyper-Blocks
   1. Create Hyperblocks and Add Predication
   2. Predication Optimizations
   3. Reverse If-conversion
7. Profiling
8. Backend
   1. Instruction generation
   2. Register Allocation
   3. TIL Generation
9. Post Compiler
   1. Trips Scheduler
   2. TASL Generator
   3. TASL Assembler
   4. Trips Linker
   5. Trips Loader

Frontend

The front end converts from the source language program to an internal representation called the abstract syntax tree (AST). The AST is language dependent. Conceptually, this form is a tree but for practical reasons a directed acyclic graph (DAG) representation is used so that some leaf nodes, such as constants and types, do not need to be duplicated.

The parsers convert the source program to the Scale form of the AST which is called Clef (Common Language Encoding Form). Currently, two parsers are available. Others may be added.

C99

Scale uses the ANTLR tool to create the C parser. This parser handles standard C, K&R C, and C99 along with some GNUisms.

F95

The Fortran parser uses recursive descent and handles Fortran 77 with Fortran F90 under development.

Clef2Scribble

Clef2Scribble converts from the AST to the control flow graph (CFG). The CFG is called scribble (for no currently valid reason) and is language independent because Clef2Scribble performs lowering. (It is also supposed to be architecture independent but is not completely due to lowering performed by the front end parsers and the architecture-and-operating-system dependent include files used by C programs.)

A basic block is defined as a sequence of CFG nodes such that:

• A basic block begins with a node that has more than one in-coming graph edge or whose parent has more than one out-going graph edge.
• A basic block ends with a node that has more than one out-going graph edge or whose successor node has more than one in-coming graph edge.

In most C programs basic blocks are on the order of 10 to 15 machine instructions.

Conversion of AST to CFG

The lowering performed converts do-loops, for-loops, etc to a common form where special nodes are inserted into the CFG to mark the start of a loop and the exits from a loop.

Lowering also converts complicated forms to simpler forms. For example,

    if (exp1 && exp2) {
      body;
    }


is converted to

    if (exp1) {
     if (exp2) {
       body;
     }
   }


Simple if-conversion and if-combining

Once the CFG is complete if-conversion and if-combining are performed in order to create larger basic blocks.

Simple if-conversion is performed for target architectures that have a conditional move capability. A conditional move provides the capability to select one out of a set of values without performing a branch. For example,

    if (exp) {
      a = 1;
    } else
      a = 2;
    }


is converted to

    a = exp ? 1 : 2;


In order for this conversion to take place, there can be no side-effects from the right-hand-sides of the assignment statements because the right-hand-side of the assignments are always evaluated.

To make the if-conversion more productive, if-combining is also performed. For example,

    if (A) {
      if (B) {
        body;
      }
 }


is converted to

    if (A & B) {
      body;
    }


(Note - the operation is simple "and" - not the C conditonal "and".) For this conversion to take place neither expression A or B can cause a side-effect because both are always evaluated.

Note - this if-combining is the opposite operation to the lowering of complex if-forms performed earlier. But, it does not reverse all such conversions and it converts some original programmer written forms.

Conversion of irreducible graphs to reducible graphs

Programmers often write spaghetti code using goto statements. This can result in an irreducible graph. An irreducible graph is one with two nodes (x & y) that are each in the dominance frontier of the other.

In order to have well-delineated loops in the CFG, Scale converts irreducible graphs to reducible graphs using node splitting. Node splitting duplicates parts of the graph so that node x is in the dominance frontier of node y and node y´ is in the dominance frontier of node x.

Conversion of implicit loops to explicit loops

Programmers often write spaghetti code using goto statements. This can result in non-structured loops. In order to have well-delineated loops in the CFG, Scale converts non-structured loops to structured loops by inserting the loop markers.

Insertion of missing loop exits

Programmers often write spaghetti code using goto statements. This can result in exits from loops that are not marked. In order to have well-delineated loops in the CFG, Scale detects such exits and marks them with loop exit nodes.

Inlining

Inlining inserts the body of a function in place of a call to that function and renames the variables in the inlined body appropriately. In order to inline a function the body (CFG) of that function must be available. Scale restricts inlining to non-recursive functions below a user-selectable size. And, Scale will not expand a CFG above a certain user-selectable multiple.

Alias Analysis

Alias analysis detects aliases between variables and references using C pointers. When there is such an alias, performing optimizations involving the variable may lead to incorrect code.

Scalar Optimizations

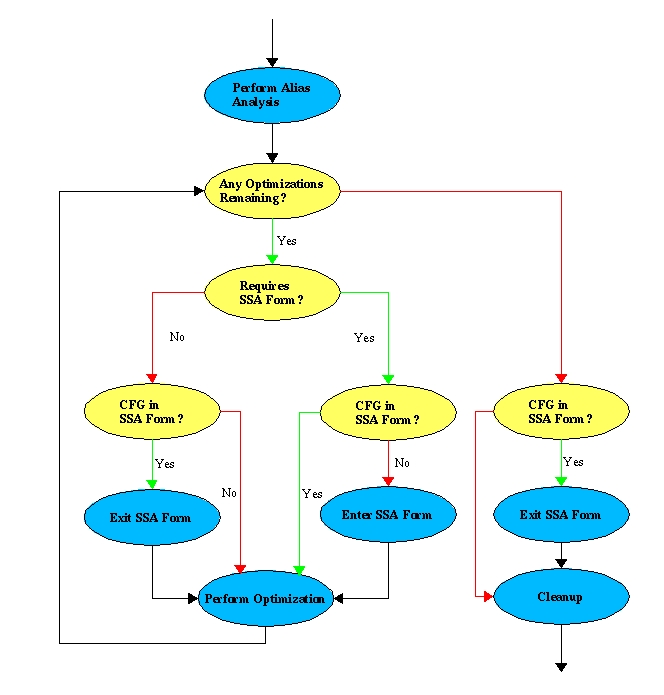

Scalar optimizations are performed in the order specified by the user of the compiler. The CFG is converted, as needed, between the SSA form of the CFG and the normal form. The optimizations make use of various information about the program. Some of this information is computed as needed.

On-demand services:

• Computation of Pre- and Post-Dominators for every CFG Node
• Computation of the Dominance Frontier for every CFG Node
• Computation of the References for every variable by CFG Node
  Note: This is not liveness information.

Various optimizations invalidate this information. Therefore, it is re-computed when and as needed.

The scalar optimizations include:

Array Access Strength Reduction

Converts calculation of array element address to simple adds

Sparse Conditional Constant Propagation

Converts constant expressions to constants and eliminates dead branches in the CFG

Dead Variable Elimination

Eliminates variables that are not used

Partial Redundancy Elimination

Eliminates common sub-expressions under special circumstanes

Global Variable Replacement

Converts references to global variables to references to local copies that can be optimized

Loop Flatten

Replicate the loop body of loops with known iteration counts and eliminates the looping

Loop Unrolling

Replicates the loop body n times to increase basic block size

Loop Invariant Code Motion

Moves loop invariants outside of the loop

Global Value Numbering

Eliminates common sub-expressions

Copy Propagation

May eliminates un-necessary copy operations

Loop Permutation

Attempts to improve cache hits by interchanging loops

Useless Copy Removal

Eliminates an artifact created by SSA form

Scalar Replacement

Replaces references to array elements by references to scalar variables

SSA form is a significantly more complicated form of the CFG. In this form, it is very difficult to add new CFG paths. SSA form provides liveness information by converting to a form where local variables are set only once and links are provided between the set and each use of the variable. There are often un-wanted results when the SSA form is converted back to the normal CFG form. For example, if an optimization moves a reference to a variable it may result in an additional local variable and copy operation.

Hyper-Blocks

On architectures that have a predication capability several small basic blocks may be combined into a larger hyper-block using predication. For example,

    if (exp) {
      body1;
    } else {
      body2;
    }


consists of 3 basic blocks.

Using predication, larger blocks can be constructed with the result that there are fewer branch instructions and, as a consequence, fewer branch mis-predictions. In a predicated architecture, the above example can be converted to

    p = exp != 0;
    if (p) body1;
    if (!p) body2;


where the if is a special predicate operation and does not result in a branch. This differs from the above if-conversion in that the body may cause side effects; the body is not evaluated unless the predicate (p or !p) is true.

Create Hyperblocks and Add Predication

Scale creates the largest hyper-blocks possible under the following constraints:

• The resulting hyper-block will not result in more instructions than a user-definable limit. The number of instructions will be an estimate based on a statistical analysis of the estimated number of instructions that will be generated. For Trips, since Scale generates TIL, even an absolute count of the resulting TIL instructions is still an estimate.
• A loop will always start a new hyper-block.
• Any available profiling information will be used to select the basic blocks to be combined into a hyper-block.

No special Hyperblock class or CFG markers are used to delineate hyper-blocks. A hyper-block is simply a normal Scale basic block as defined above but which uses predicated stores. A predicated store is specified using the ExprChord class and includes an additional in-coming data-edge that is the predicate value. For example,

    if (pexp) {
      a = exp1;
      b = exp2;
    } else {
      c = exp3;
    }


is converted to

    t = pexp;
    if (t) a = exp1;
    if (t) b = exp2;
    if (!t) c = exp3;


where the if is the special predicated store expression with three in-coming data edges (e.g., t, a, and exp1).

Each predicated store is converted by the architecture-specific backend to the appropriate code. For example, the backend that generates C code converts a predicated store to

     if (predicate) lhs = rhs;


where lhs is the left-hand-side expression of the store and rhs> is the right-hand-side expression.

Predication Optimizations

TBD

Reverse If-conversion

For systems that do not have predication the paper "A Framework for Balancing Control Flow and Predication" by D. August, et al indicates that some benefit may be obtained by forming hyper-blocks, performing the predicated optimizations, and then converting back into un-predicated code. Therefore, if hyperblocks have been formed and the target architetcure does not support predication, this pass of the compiler will remove the predication.

Profiling

Profiling instruments the CFG by adding CFG nodes that generate profiling information. Block, edge, path, and loop profiling are available profiling options.

Backend

The backend converts the architecture independent CFG into architecture dependent instructions. For Scale, the backend generates an assembly language file and expects that file to be processed by a native assembler tool.

The definition of a basic block from this point on is slightly different; The new definition is that a basic block is defined as a sequence of instructions such that:

• A basic block begins swith a label that has more than one in-coming graph edge or whose parent has more than one out-going graph edge or its predecessor is a call instruction.
• A basic block ends with an instruction that has more than one out-going graph edge or whose successor node has more than one in-coming graph edge or is a call instruction.

Instruction generation

Each CFG node is converted to a sequence of instructions which reference virtual registers. Using virtual registers provides an infinite number of registers which results in much simpler instruction generation.

For predicated store instances the appropriate predicated instructions are generated. Note, even though a complete right-hand-side of an assigment is predicated, it is not necessary to predicate every instruction that results from that right-hand-side. Those instructions that do not cause side effects (e.g., a load or an integer add) on the target architecture do not need to be predicated. The fan-out of the predicated value is reduced by not predicating these instructions.

Register Allocation

References to virtual registers are converted to references to actual hardware registers on the target architecture. An architecture independent register allocated is used. It knows only whether an instructions defines or uses a specific register (real or virtual). The register allocator is able to construct register live range information from this.

For Trips, only registers that are live at the beginning of a basic block are allocated. It is assumed that the remaining virtual registers will become dataflow edges in the Trips grid. It is possible for the register allocator to annotate each basic block with this liveness information.

TIL Generation

The instruction sequence is converted to the assembly language of the target architecture. For Trips this is the Trips Intermediate Language which is intended to be human readable and writable.

Post Compiler

These steps occur after the compiler is used to generate an assembly language file.

Trips Scheduler

The Trips scheduler is responsible for converting the instructions of Trips Intermediate Language, that are in operand form, to the actual Trips instructions, that are in target form. The scheduler must then assign these instructions to the grid and handle the fan-out issues, etc. The scheduler must do this only on a basic block by basic block basis.

It is possible that a basic block may be too large to schedule on the grid. In this case, either the estimates used by the compiler must be adjusted so that this does not occur. Or, the scheduler must be able to split a basic block into two blocks and must be able to do a reverse if-conversion (see above) to remove the predication as needed.

Splitting a basic block into two or more parts does not introduce any register allocation problems. Data edges between the two parts must be passed in global registers. If the scheduler knows which global registers are live at the begining of the original block, it need only use registers that are not live to hold the values between the two parts. No other register allocation need be performed and no spilling results.

It is possible, but unlikely that there will be insufficient registers available. It should be possible to prevent this problem by analysis during hyper-block formation.

Field Summary

protected int	aaLevel
protected Aliases	aliases
protected boolean	all
protected java.lang.String	architecture
protected int	backendFeatures
protected int	categories
static boolean	classTrace True if traces are to be performed.
CmdParam	cpAA
CmdParam	cpAnnot
CmdParam	cpAnsi
CmdParam	cpArch
CmdParam	cpAsm
CmdParam	cpBi
CmdParam	cpC89
CmdParam	cpC99
CmdParam	cpCat
CmdParam	cpCc
CmdParam	cpCca
CmdParam	cpCcb
CmdParam	cpCdd
CmdParam	cpCga
CmdParam	cpCgb
CmdParam	cpCkr
CmdParam	cpCmi
CmdParam	cpD
CmdParam	cpDaVinci
CmdParam	cpDcg
CmdParam	cpDd
CmdParam	cpDebug
CmdParam	cpDir
CmdParam	cpDm
CmdParam	cpFcl
CmdParam	cpFf
CmdParam	cpFiles
CmdParam	cpFpr
CmdParam	cpG
CmdParam	cpGcc
CmdParam	cpGphType
CmdParam	cpHb
CmdParam	cpHda
CmdParam	cpIcf
CmdParam	cpIh
CmdParam	cpIncl
CmdParam	cpIncls
CmdParam	cpInl
CmdParam	cpInls
CmdParam	cpIs
CmdParam	cpMulti
CmdParam	cpNaln
CmdParam	cpNoWarn
CmdParam	cpNp
CmdParam	cpNW
CmdParam	cpO
CmdParam	cpOa
CmdParam	cpOc
CmdParam	cpOfile
CmdParam	cpOs
CmdParam	cpPg
CmdParam	cpPh
CmdParam	cpPi
CmdParam	cpPp
CmdParam	cpPrePro
CmdParam	cpQuiet
CmdParam	cpR
CmdParam	cpSan
CmdParam	cpSc
CmdParam	cpSca
CmdParam	cpScb
CmdParam	cpSf
CmdParam	cpSga
CmdParam	cpSgb
CmdParam	cpSla
CmdParam	cpSnap
CmdParam	cpStat
CmdParam	cpSuspend
CmdParam	cpTcl
CmdParam	cpU
CmdParam	cpUc
CmdParam	cpUnsafe
CmdParam	cpVcg
CmdParam	cpVers
CmdParam	cpWhich
CmdParam	cpWrap
protected boolean	crossCompile
protected boolean	debugging
protected boolean	doA
protected boolean	doC
protected boolean	doLines
protected boolean	doOfile
protected boolean	doSingle
static java.lang.String	hostArch The machine the compiler is running on.
static java.lang.String	hostOS The operating the compiler is running on.
protected java.io.FileOutputStream	inlfos
protected double	inllev
protected java.io.PrintWriter	inlStatusStream
protected Vector<java.lang.String>	inputFiles
protected static java.lang.Integer	int0
protected static java.lang.Integer	int1
protected static java.lang.Integer	int2
protected static java.lang.Integer	int4
protected static java.lang.Boolean	off
protected static java.lang.Boolean	on
protected java.lang.String	opts
protected CmdParam[]	params
protected int	profGuidedOps
protected Vector<java.lang.String>	profilePaths
protected int	profInstOps
protected boolean	readClassFiles
protected java.lang.String	targetArch
static java.lang.String	version The version of the compiler.
protected Vector<java.lang.String>	warnings

Constructor Summary

protected

Scale()

Method Summary

protected void	addWarning(int msg, int level) Add a warning message and display it if needed.
protected void	addWarning(int msg, java.lang.String text, int level) Add a warning message and display it if needed.
protected void	addWarning(int msg, java.lang.String text1, java.lang.String text2) Add a warning message and display it if needed.
void	compile(java.lang.String[] args) Compile a C or Fortran program.
protected void	convertToScribble(CallGraph cg) Convert each RoutineDecl in a CallGraph to a CFG.
static java.lang.String	dd() Return the number of data dependence level selected.
protected void	displayClef(CallGraph cg, java.lang.String rname, java.lang.String name) Display a Clef AST.
void	displayScribble(Scribble scribble, java.lang.String name) Display a CFG.
static boolean	executeCommand(java.lang.String cmd) Execute an OS command represented by a string.
protected boolean	executeCommand(java.lang.String[] cmd) Execute an OS command represented by an array of strings.
protected boolean	executeCommand(Vector<java.lang.String> command) Execute an OS command represented by a list of strings.
protected void	genAssemblyfromCallGraph(CallGraph cg) Generate an assembly file from a CallGraph using each RoutineDecl's CFG.
protected void	genCfromCallGraph(CallGraph cg) Generate a .c file from a CallGraph using each RoutineDecl's CFG.
protected void	genCfromClef(CallGraph cg, java.lang.String name) Print out the C representation of the Clef AST.
protected void	genCfromScribble(Scribble scribble, java.lang.String name) Print out the C representation of the Scribble form.
protected java.lang.String	genFileName(java.lang.String name, java.lang.String extension) Return a path name for the new file including the directory specified by the "dir" switch.
static int	globalVariables() Return the number of global variables.
boolean	isCrossCompile() Return true if cross-compiling.
static void	main(java.lang.String[] args) Compile a C or Fortran program.
protected void	multiCompilation() Compile all source files together.
protected void	optimizeClef(CallGraph cg) Once a Clef AST has been generated, this method is called to perform any transformations on it.
protected void	optimizeScribble(Scribble scribble, java.lang.String name) This method performs any optimizations/transformations on a CFG.
static java.lang.String	opts() Return the optimizations in use.
protected boolean	parseAA() Process the alias analysis parameters.
protected boolean	parseArchParams()
protected void	parseCmdLine(java.lang.String[] args, CmdParam[] params) Process the command line parameters.
protected Vector<java.lang.String>	parseCmdLine(java.lang.String[] args, CmdParam[] params, CmdParam files)
protected void	parseFlagFile(java.lang.String filename) Process the flag settings from the specified file.
protected void	parseFlags(Vector<java.lang.String> trs) Process the flag settings from the command line -f switch.
protected void	parseHyperblockParams() Parse options for the hyperblock generator.
protected void	parseMiscellaneousParams(java.lang.String forWhat)
protected void	parseOptHeuristics(java.lang.String optLetters, java.lang.String forWhat) Parse the string of letters that specify the optimizations to be applied.
protected void	parseOpts(java.lang.String optLetters, java.lang.String forWhat) Parse the string of letters that specify the optimizations to be applied.
protected boolean	parseReportParams(java.lang.String forWhat) Return true if there is no routine name selected for special debugging.
protected void	parseTraces(Vector<java.lang.String> trs) Process the trace flag settings from the command line -t switch.
protected java.lang.String	parseWhichParam()
protected void	processFile(java.lang.String firstInputFile, Suite suite) Convert the source file to Clef and add it to the set of Clef ASTs.
protected void	processSuite(Suite suite) This method is called to add user-specified annotations and perform alias analysis.
protected void	removeFile(java.lang.String file) Remove a file
protected void	separateCompilation() Compile each source file separately.
protected void	splitString(java.lang.String str, Vector<java.lang.String> v)
static java.lang.String	version() Return the compiler version.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

classTrace

public static boolean classTrace

True if traces are to be performed.

hostArch

public static final java.lang.String hostArch

The machine the compiler is running on.

hostOS

public static final java.lang.String hostOS

The operating the compiler is running on.

version

public static final java.lang.String version

The version of the compiler.

See Also:

Constant Field Values

int0

protected static final java.lang.Integer int0

int1

protected static final java.lang.Integer int1

int2

protected static final java.lang.Integer int2

int4

protected static final java.lang.Integer int4

on

protected static final java.lang.Boolean on

off

protected static final java.lang.Boolean off

cpInl

public CmdParam cpInl

cpAA

public CmdParam cpAA

cpCat

public CmdParam cpCat

cpDebug

public CmdParam cpDebug

cpStat

public CmdParam cpStat

cpCdd

public CmdParam cpCdd

cpSan

public CmdParam cpSan

cpFiles

public CmdParam cpFiles

cpIncl

public CmdParam cpIncl

cpIncls

public CmdParam cpIncls

cpAnnot

public CmdParam cpAnnot

cpD

public CmdParam cpD

cpU

public CmdParam cpU

cpTcl

public CmdParam cpTcl

cpFcl

public CmdParam cpFcl

cpPp

public CmdParam cpPp

cpNW

public CmdParam cpNW

cpIcf

public CmdParam cpIcf

cpCmi

public CmdParam cpCmi

cpMulti

public CmdParam cpMulti

cpPrePro

public CmdParam cpPrePro

cpSla

public CmdParam cpSla

cpOfile

public CmdParam cpOfile

cpOs

public CmdParam cpOs

cpOa

public CmdParam cpOa

cpOc

public CmdParam cpOc

cpCcb

public CmdParam cpCcb

cpCca

public CmdParam cpCca

cpCgb

public CmdParam cpCgb

cpCga

public CmdParam cpCga

cpDcg

public CmdParam cpDcg

cpC89

public CmdParam cpC89

cpC99

public CmdParam cpC99

cpGcc

public CmdParam cpGcc

cpCkr

public CmdParam cpCkr

cpAnsi

public CmdParam cpAnsi

cpUnsafe

public CmdParam cpUnsafe

cpVers

public CmdParam cpVers

cpSnap

public CmdParam cpSnap

cpG

public CmdParam cpG

cpNaln

public CmdParam cpNaln

cpIs

public CmdParam cpIs

cpBi

public CmdParam cpBi

cpPh

public CmdParam cpPh

cpNp

public CmdParam cpNp

cpDm

public CmdParam cpDm

cpQuiet

public CmdParam cpQuiet

cpNoWarn

public CmdParam cpNoWarn

cpDaVinci

public CmdParam cpDaVinci

cpVcg

public CmdParam cpVcg

cpHda

public CmdParam cpHda

cpFpr

public CmdParam cpFpr

cpSc

public CmdParam cpSc

cpUc

public CmdParam cpUc

cpSuspend

public CmdParam cpSuspend

cpPg

public CmdParam cpPg

cpPi

public CmdParam cpPi

cpInls

public CmdParam cpInls

cpScb

public CmdParam cpScb

cpSca

public CmdParam cpSca

cpSgb

public CmdParam cpSgb

cpSga

public CmdParam cpSga

cpArch

public CmdParam cpArch

cpCc

public CmdParam cpCc

cpAsm

public CmdParam cpAsm

cpDir

public CmdParam cpDir

cpR

public CmdParam cpR

cpWhich

public CmdParam cpWhich

cpGphType

public CmdParam cpGphType

cpDd

public CmdParam cpDd

cpO

public CmdParam cpO

cpIh

public CmdParam cpIh

cpWrap

public CmdParam cpWrap

cpHb

public CmdParam cpHb

cpSf

public CmdParam cpSf

cpFf

public CmdParam cpFf

params

protected CmdParam[] params

inputFiles

protected Vector<java.lang.String> inputFiles

profilePaths

protected Vector<java.lang.String> profilePaths

warnings

protected Vector<java.lang.String> warnings

doSingle

protected boolean doSingle

doOfile

protected boolean doOfile

doC

protected boolean doC

doA

protected boolean doA

debugging

protected boolean debugging

all

protected boolean all

doLines

protected boolean doLines

readClassFiles

protected boolean readClassFiles

crossCompile

protected boolean crossCompile

inllev

protected double inllev

aaLevel

protected int aaLevel

categories

protected int categories

backendFeatures

protected int backendFeatures

profInstOps

protected int profInstOps

profGuidedOps

protected int profGuidedOps

architecture

protected java.lang.String architecture

opts

protected java.lang.String opts

targetArch

protected java.lang.String targetArch

aliases

protected Aliases aliases

inlfos

protected java.io.FileOutputStream inlfos

inlStatusStream

protected java.io.PrintWriter inlStatusStream

Constructor Detail

Scale

protected Scale()

Method Detail

dd

public static java.lang.String dd()

Return the number of data dependence level selected.

opts

public static java.lang.String opts()

Return the optimizations in use.

globalVariables

public static int globalVariables()

Return the number of global variables.

version

public static java.lang.String version()

Return the compiler version.

main

public static void main(java.lang.String[] args)

Compile a C or Fortran program.

Parameters:

args - the command line arguments

compile

public void compile(java.lang.String[] args)

Compile a C or Fortran program.

Parameters:

args - the command line arguments

isCrossCompile

public boolean isCrossCompile()

Return true if cross-compiling. We are cross-compiling if the compiler host architecture is not the same as the target architecture.

addWarning

protected void addWarning(int msg,
                          int level)

Add a warning message and display it if needed.

addWarning

protected void addWarning(int msg,
                          java.lang.String text,
                          int level)

Add a warning message and display it if needed.

addWarning

protected void addWarning(int msg,
                          java.lang.String text1,
                          java.lang.String text2)

Add a warning message and display it if needed.

parseCmdLine

protected void parseCmdLine(java.lang.String[] args,
                            CmdParam[] params)

Process the command line parameters.

Parameters:

args - the array of command line parameters

params - an array of allowed command line parameters

parseCmdLine

protected Vector<java.lang.String> parseCmdLine(java.lang.String[] args,
                                                CmdParam[] params,
                                                CmdParam files)

parseWhichParam

protected java.lang.String parseWhichParam()

parseReportParams

protected boolean parseReportParams(java.lang.String forWhat)

Return true if there is no routine name selected for special debugging.

parseArchParams

protected boolean parseArchParams()

parseMiscellaneousParams

protected void parseMiscellaneousParams(java.lang.String forWhat)

parseHyperblockParams

protected void parseHyperblockParams()

Parse options for the hyperblock generator.

parseOpts

protected void parseOpts(java.lang.String optLetters,
                         java.lang.String forWhat)

Parse the string of letters that specify the optimizations to be applied.

Parameters:

optLetters - is the String specifying the optimizations

forWhat - specifies the module for the statistics generated

parseOptHeuristics

protected void parseOptHeuristics(java.lang.String optLetters,
                                  java.lang.String forWhat)

Parse the string of letters that specify the optimizations to be applied.

Parameters:

optLetters - is the String specifying the optimizations

forWhat - specifies the module for the statistics generated

parseAA

protected boolean parseAA()

Process the alias analysis parameters.

Returns:

true if this is a single compilation.

parseTraces

protected void parseTraces(Vector<java.lang.String> trs)

Process the trace flag settings from the command line -t switch.

parseFlagFile

protected void parseFlagFile(java.lang.String filename)

Process the flag settings from the specified file.

parseFlags

protected void parseFlags(Vector<java.lang.String> trs)

Process the flag settings from the command line -f switch.

multiCompilation

protected void multiCompilation()
                         throws java.lang.Exception

Compile all source files together.

Throws:

java.lang.Exception

separateCompilation

protected void separateCompilation()
                            throws java.lang.Exception

Compile each source file separately. Note that profiling is not compatible with separate compilation.

Throws:

java.lang.Exception

processFile

protected void processFile(java.lang.String firstInputFile,
                           Suite suite)
                    throws java.lang.Exception

Convert the source file to Clef and add it to the set of Clef ASTs.

Throws:

java.lang.Exception

convertToScribble

protected void convertToScribble(CallGraph cg)

Convert each RoutineDecl in a CallGraph to a CFG.

Parameters:

cg - is the CallGraph

optimizeClef

protected void optimizeClef(CallGraph cg)

Once a Clef AST has been generated, this method is called to perform any transformations on it.

Parameters:

cg - is the Clef AST

processSuite

protected void processSuite(Suite suite)

This method is called to add user-specified annotations and perform alias analysis.

Parameters:

suite - is the suite of call graphs.

See Also:

Suite

optimizeScribble

protected void optimizeScribble(Scribble scribble,
                                java.lang.String name)

This method performs any optimizations/transformations on a CFG.

Parameters:

scribble - the scribble graph

name - is the name of the routine to be optimized

See Also:

Scribble

genFileName

protected java.lang.String genFileName(java.lang.String name,
                                       java.lang.String extension)

Return a path name for the new file including the directory specified by the "dir" switch.

Parameters:

name - a file path from which to extract the file name

extension - the extension to use for the new file

genCfromClef

protected void genCfromClef(CallGraph cg,
                            java.lang.String name)
                     throws java.lang.Exception

Print out the C representation of the Clef AST.

Parameters:

cg - is the Clef AST

name - is is used to create the result file name

Throws:

java.lang.Exception

genCfromScribble

protected void genCfromScribble(Scribble scribble,
                                java.lang.String name)

Print out the C representation of the Scribble form.

Parameters:

scribble - is the CFG

name - is is used to create the result file name

displayScribble

public void displayScribble(Scribble scribble,
                            java.lang.String name)

Display a CFG.

Parameters:

scribble - is the CFG

name - is the display name

displayClef

protected void displayClef(CallGraph cg,
                           java.lang.String rname,
                           java.lang.String name)

Display a Clef AST. If the specified routine name is not null then only the AST for that routine is displayed. Otherwise, the AST for the entire call graph is displayed.

Parameters:

cg - is the call graph containing the Clef AST

rname - is the name of the routine or null

name - is the display name

splitString

protected void splitString(java.lang.String str,
                           Vector<java.lang.String> v)

executeCommand

public static boolean executeCommand(java.lang.String cmd)
                              throws java.lang.Exception

Execute an OS command represented by a string. Display the command output on System.out.

Parameters:

cmd - is the command to execute

Returns:

true if the command failed

Throws:

java.lang.Exception

executeCommand

protected boolean executeCommand(java.lang.String[] cmd)
                          throws java.lang.Exception

Execute an OS command represented by an array of strings. Display the command output on System.out.

Parameters:

cmd - is the command to execute

Returns:

true if the command failed

Throws:

java.lang.Exception

executeCommand

protected boolean executeCommand(Vector<java.lang.String> command)
                          throws java.lang.Exception

Execute an OS command represented by a list of strings.

Parameters:

command - is the command to execute

Returns:

true if the command failed

Throws:

java.lang.Exception

removeFile

protected void removeFile(java.lang.String file)
                   throws java.lang.Exception

Remove a file

Parameters:

file - is the full pathname for the file

Throws:

java.lang.Exception

genCfromCallGraph

protected void genCfromCallGraph(CallGraph cg)
                          throws java.lang.Exception

Generate a .c file from a CallGraph using each RoutineDecl's CFG.

Parameters:

cg - is the CallGraph

Throws:

java.lang.Exception

genAssemblyfromCallGraph

protected void genAssemblyfromCallGraph(CallGraph cg)
                                 throws java.lang.Exception

Generate an assembly file from a CallGraph using each RoutineDecl's CFG.

Parameters:

cg - is the CallGraph

Throws:

java.lang.Exception
